replacement option found
Existing pump - Circulation
Brand
Older Wilo
Product name
BL 32/160-4/2
Item no.
2121127
Mains connection
3x400 V
Pipe Connection
DN 50 / DN 32
Nominal power P2
4 kW
Replacement pump - Conventional Exchange sheet
Product name
Atmos GIGA-B 32/150-4/2
Item no.
2213833
MEI
≥ 0,4
IE
3
Mains connection
3x400 V
Pipe Connection
DN 50 / DN 32
Rated Current
7,8 A
Nominal power P2
4 kW
Comment
Possible modification of installation, replacement pump has compliant connection diameter.
If you are pumping chilled water media or special material requirements, please contact Wilo Technical Inside Sales. Replacement pumps designed for glycolin-infused water (max. 50%) have the -S1 extension and a different part number than standard seal pumps. Always consult Wilo when pumping media other than water.
Product information

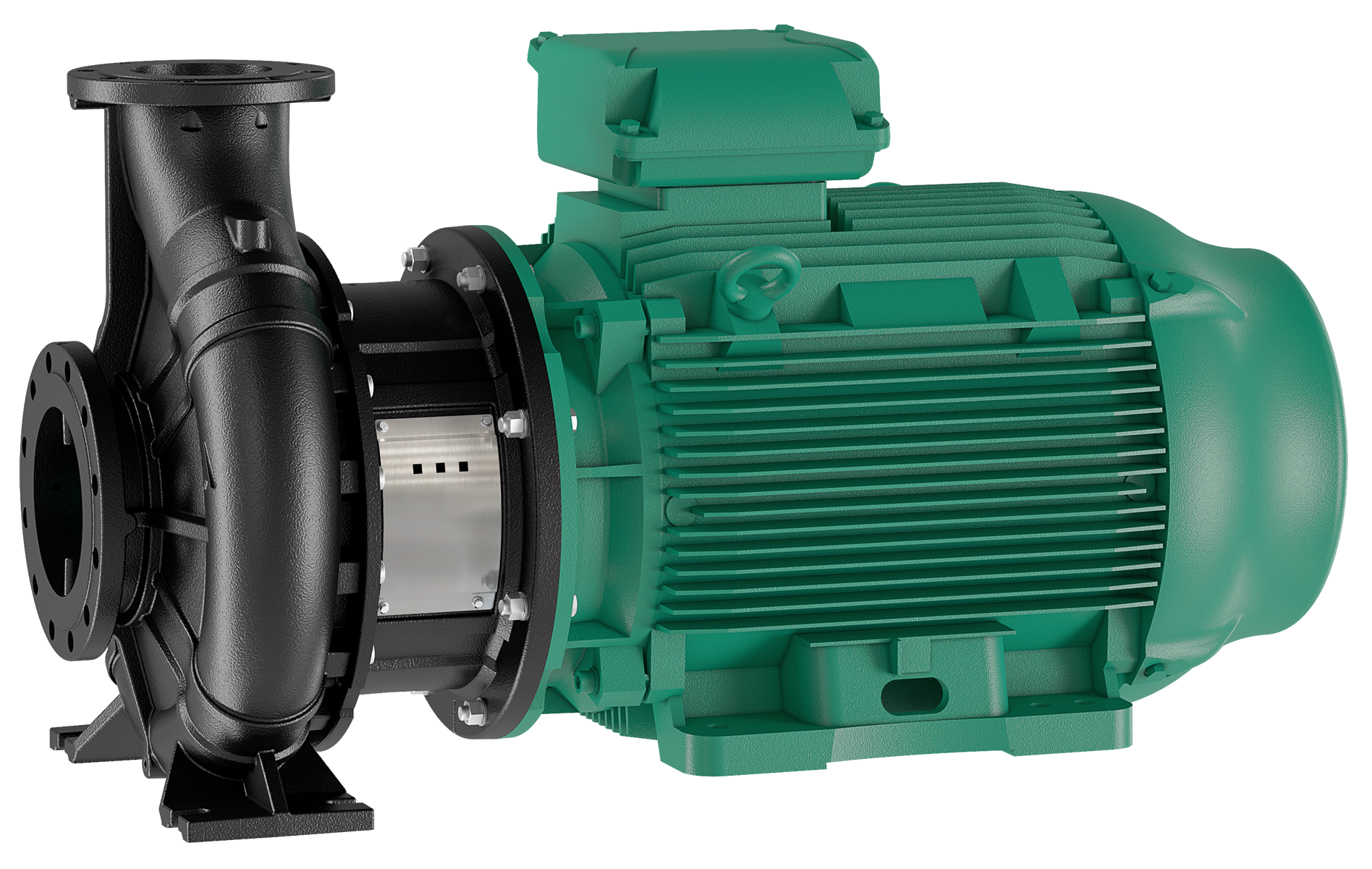

Atmos GIGA-B 32/150-4/2
Atmos GIGA-B 32/150-4/2
Item no.
: 2213833
Glanded pump in close-coupled design with flange connection
Application
For pumping heating water (in accordance with VDI 2035), water-glycol mixtures, cooling water and chilled water without abrasive substances in heating, chilled water and cooling water systems.
Technical data
- Permissible temperature range of -20 °C to +140 °C
- Mechanical seal for pumping water up to Tmax = +140 °C. Up to T ≤ +40 °C, a glycol admixture of 20 % to 40 % by volume is permissible. An alternative mechanical seal must be provided for water-glycol mixtures with a glycol content of > 40% to max. 50% by volume and a fluid temperature of > +40 °C to max. +120 °C or other fluids that differ from water. When using water-glycol mixtures, the use of an S1 variant with a corresponding mechanical seal is generally recommended.
- Mains connection 3~400 V, 50 Hz (others on request)
- IP rating IP55
- Nominal diameter DN 32 to DN 150
- Max. operating pressure 16 bar (optionally 25 bar on request)
Materials
Pump housing and lantern: Standard: EN-GJL-250; optional: Spheroidal cast iron EN-GJS-400-18-LT (depending on type)
Impeller: Standard: EN-GJL-200; special version: Bronze CuSn 10 stainless steel 1.4408
Shaft: 1.4122
Mechanical seal: AQEGG; other mechanical seals on request
Pump housing and lantern: Standard: EN-GJL-250; optional: Spheroidal cast iron EN-GJS-400-18-LT (depending on type)
Impeller: Standard: EN-GJL-200; special version: Bronze CuSn 10 stainless steel 1.4408
Shaft: 1.4122
Mechanical seal: AQEGG; other mechanical seals on request
Construction
Single-stage low-pressure centrifugal pump in close-coupled design, with axial suction port and radially arranged discharge port with
- Mechanical seal
- Flange connection with pressure measuring connection R 1/8
- Lantern
- Coupling
- IEC standard motor
Scope of delivery
…-L1 variant with bronze impeller (at additional charge)
…-L4 variant with stainless steel impeller (at additional charge)
...-P6 variant with back pull-out design and cartridge mechanical seal
…-H1 variant with housing made of ductile cast iron on request
...-P4 variant for max. operating pressure of 25 bar on request
...-P2 variant: Drinking water version on request
- Pump
- Installation and operating instructions
…-L1 variant with bronze impeller (at additional charge)
…-L4 variant with stainless steel impeller (at additional charge)
...-P6 variant with back pull-out design and cartridge mechanical seal
…-H1 variant with housing made of ductile cast iron on request
...-P4 variant for max. operating pressure of 25 bar on request
...-P2 variant: Drinking water version on request
Other voltages and frequencies as well as ATEX approval on request
