3 replacement options found

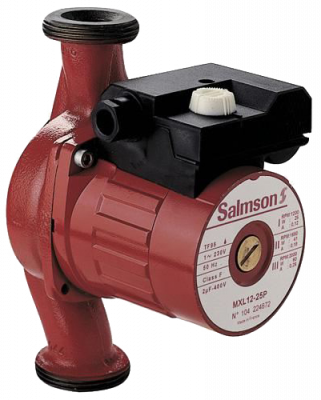

Existing pump - Circulation Pump curve

Brand Salmson
Product name MXL 30-25P (H)
Overall length 180 mm
Mains connection 1x230 V
Pipe Connection G 40

Replacement pump - High Efficiency Premium Exchange sheet

Product name Stratos PICO 25/1-6 -180
Item no. 4216613
EEI ≤ 0,2
Overall length 180 mm
Mains connection 1x230 V
Pipe Connection G 40
Rated Current 0,44 A
Fluid temperature range +2 - +110 °C

Comment

Fits without any modification of piping.

Product information
Stratos PICO 25/1-6 -180

Stratos PICO 25/1-6 -180
Item no.: 4216613

Your advantages
  • Maximum energy efficiency thanks to the combination of EC motor technology, Dynamic Adapt and precise setting options options for precise adjustment
  • High reliability due to self-protecting routines such as the automatic dry-running detection and automatic restart
  • Intuitive adjustment and maintenance via Green Button Technology for the activation of functions and operating modes on the LC display
  • Easy monitoring of the current power consumption, flow and cumulative kWh
  • Straight-forward electrical connection without any tools thanks to the Wilo-Connector
Maximum efficiency and operating convenience
The perfect interplay of an EC motor, the proven Dynamic Adapt function and settings accuracy of 0.1 m means that the Wilo-Stratos PICO delivers maximum energy efficiency.

Intuitive operation and maintenance, supported by symbols on the LCD screen, as well as automatic protection features offer a high degree of operating comfort.

Construction
Glandless circulator with screwed connection, blocking-current proof EC motor and integrated electronic power control.

Application
All hot-water heating systems, air-conditioning applications, industrial circulation systems.

Equipment/function
Operating modes:
  • Δ p-c for constant differential pressure
  • Δ p-v for variable differential pressure, combinable with the Dynamic Adapt control function
Manual functions
  • Setting the operating mode
  • Setting of pump output (delivery head)
  • Setting automatic setback operation
  • Reset function for resetting the electricity meter
  • Reset function for resetting to factory settings
  • "Hold" function (key lock) for disabling the settings
Automatic functions
  • Infinitely variable power adjustment according to the operating mode
  • Automatic setback operation
  • Automatic venting function
  • Automatic dry-running detection
  • Automatic restart
Signal and display functions
  • Display of the current power consumption in W
  • Display of the current flow in m³/h
  • Display of the cumulative kilowatt hours in kWh
  • Display of fault messages (error codes)
Equipment
  • Wrench attachment point on pump body
  • Quick electrical connection with Wilo-Connector
  • Automatic venting
  • Blocking-current proof motor
  • Particle filter
  • Thermal insulation as standard for heating applications
Scope of delivery
  • Pump
  • Thermal insulation
  • Wilo-Connector
  • Gaskets
  • Installation and operating instructions
Technical data
  • Fluid temperature +2 °C to +110 °C
  • Mains connection 1~230 V, 50 Hz
  • Protection class IPX4D
  • Screwed connection Rp ½, Rp 1 and Rp 1¼
  • Max. operating pressure 10 bar
Materials
  • Pump housing: Cast iron ​(Stainless steel: Type …-N)
  • Thermal insulation: polypropylene
  • Shaft: Stainless steel
  • Bearing: carbon, metal impregnated
  • Impeller: Plastic
Description/construction
  • High-efficiency pump especially for single and two-family houses, as well as for two to six-family houses.
  • Up to 90% electricity savings compared to older uncontrolled heating pumps
  • Minimum power consumption just 3 watts
  • Pre-selectable control modes for optimum load adaption Δp-c (constant differential pressure), Δp-v (variable differential pressure) can be combined with the Dynamic Adapt control function
  • Automatic setback operation
  • Integrated motor protection
  • LCD display displaying the current consumption in watts and the cumulative kilowatt hours
  • Reset function for resetting the electricity meter or for resetting the settings to the factory settings
  • "Hold" function (key lock) for disabling the settings
  • Venting routine for automatic venting of the rotor chamber
  • Quick electrical connection with Wilo-Connector
  • Flexible installation thanks to compact construction
  • Very high starting torque for reliable starting
CONNECTOR SC1
Item no.: 4144582
Contact, hit WS8:
  • Fits PICO pumps and Star-Z NOVA.
CONNECTOR ANGLE
Item no.: 4150229
Contact, angled WS8:
  • Fits PICO pumps and Star-Z NOVA.
  • Comes with cable.
Power supply cord + WS8 connector
Item no.: 4200870
Extension cable with connector:
  • WS8 connector.
  • Cable length 2 meters.
Gasket union G 40
Item no.: 2835960
Adapter Molex WS8
Item no.: 4522587
Molex connector, WS8
  • Fits PICO pumps and Star-Z NOVA

Replacement pump - High Efficiency Premium Exchange sheet

Product name Stratos PICO 25/0,5-6 -180
Item no. 4244395
EEI ≤ 0,18
Overall length 180 mm
Mains connection 1x230 V
Pipe Connection G 40
Rated Current 0,44 A
Nominal power P2 0,03 kW
Fluid temperature range -10 - +110 °C

Comment

Fits without any modification of piping.

Product information
Stratos PICO 25/0,5-6 -180

Stratos PICO 25/0,5-6 -180
Item no.: 4244395

Design
Glandless circulator with screwed connection, blocking-current proof EC motor and integrated electronic power control.

Application
All hot-water heating systems, air-conditioning applications, industrial circulation systems.

Equipment/function
Operating modes:
  • Dynamic Adapt plus
  • Δ p-c for constant differential pressure
  • Δp-v for variable differential pressure
  • Constant speed (n-const.)
  • Compatible with the Wilo-Smart Balance App
Manual functions
  • Setting the operating mode
  • Setting of pump output (delivery head)
  • Setting automatic setback operation
  • Setting automatic operation for pressure-independent valves
  • Pump venting
  • Manual restart
  • Reset function for resetting the electricity meter
  • Reset function for resetting to factory settings
  • Key lock for disabling the settings
Automatic functions
  • Continuous power adjustment according to the operating mode
  • Automatic setback operation
  • Automatic venting function
  • Automatic dry-running detection
  • Automatic restart
Signal and display functions
Alternating display:
  • Current volume flow
  • Current delivery head
  • Current speed
  • Power consumption
  • Energy consumption
  • Display status for warning messages (yellow display) and error messages (red display) each with error code and description in plain text
Display status for process display (blue display):
  • Pump venting
  • Manual restart
Status LED:
  • Green LED: Proper operation
  • Blue LED: Pump communication with external module
Equipment
  • Wrench attachment point on pump body
  • Quick electrical connection with Wilo-Connector
  • Automatic venting
  • Blocking-current proof motor
  • Particle filter
  • Thermal insulation as standard for heating applications
  • Wilo-Connectivity interface for external modules
Technical data
  • Fluid temperature -10 °C to +110 °C
  • Mains connection 1~230 V, 50 Hz
  • Protection class IPX4D
  • Screwed connection G1, G1½, G2
  • Max. operating pressure 10 bar
Materials
  • Pump housing: Grey cast iron with cataphoretic coating (stainless steel: type …-N)
  • Thermal insulation: Polypropylene
  • Shaft: Stainless steel
  • Bearing: carbon, metal impregnated
  • Impeller: Plastic
Delivery state
  • Pump
  • Thermal insulation
  • Wilo-Connector
  • Gaskets
  • Installation and operating instructions
CONNECTOR SC1
Item no.: 4144582
Contact, hit WS8:
  • Fits PICO pumps and Star-Z NOVA.
CONNECTOR ANGLE
Item no.: 4150229
Contact, angled WS8:
  • Fits PICO pumps and Star-Z NOVA.
  • Comes with cable.
Power supply cord + WS8 connector
Item no.: 4200870
Extension cable with connector:
  • WS8 connector.
  • Cable length 2 meters.
Gasket union G 40
Item no.: 2835960
Adapter Molex WS8
Item no.: 4522587
Molex connector, WS8
  • Fits PICO pumps and Star-Z NOVA
Smart Connect-Module BT Stratos PICO
Item no.: 4239241

Replacement pump - High Efficiency Standard Exchange sheet

Product name Yonos PICO 25/1-6 -180
Item no. 4215515
EEI ≤ 0,20
Overall length 180 mm
Mains connection 1x230 V
Pipe Connection G 40
Rated Current 0,44 A
Fluid temperature range -10 - +95 °C

Comment

Fits without any modification of piping.

Product information
Yonos PICO 25/1-6 -180

Yonos PICO 25/1-6 -180
Item no.: 4215515

Your advantages
  • Maximum operating convenience owing to the Green Button Technology with new, intelligent settings, intuitive user interface and new functions
  • Optimised energy efficiency owing to EC motor technology, settings with an accuracy of 0.1 m and display of current power consumption
  • Quick and easy installation and smooth replacement owing to the new, optimised construction
  • Easy maintenance and high degree of operational reliability thanks to automatically and manually triggered restart or pump venting function
  • Maximum operational reliability thanks to proven technology
Even more convenience, even less power consumption.

A visible symbol of the new generation of high-efficiency pumps for heating and air-conditioning systems in residential dwellings is the green operating button, which together with new functions provides maximum convenience in commissioning and maintenance. Defaults for radiators or underfloor heating – symbolised by pictograms – save time during commissioning. The energy efficiency was improved once more and the power consumption is thus even lower and always in view. And thanks to the more compact construction, pump replacement is now even easier.

Construction
Glandless circulator with screwed connection, blocking-current proof EC motor and integrated electronic power control.

Application
All hot-water heating systems, air-conditioning applications, industrial circulation systems.

Equipment/function
Operating modes:
  • Constant differential pressure
  • Variable differential pressure
  • Constant speed (3 control pump curves)
Manual functions
  • Setting the operating mode in accordance with the application
  • Setting of pump output (delivery head)
  • Setting the constant speed
  • Pump venting function
  • Manual restart
Automatic functions
  • Continuous power adjustment according to the operating mode
  • Automatic restart
  • Automatic dry-running detection
Signal and display functions
  • Display of power consumption in W
  • Display of delivery head for setting
  • Display of fault messages (error codes)
  • Display of manually activated restart or pump venting function
Equipment
  • Wrench attachment point on pump body
  • Quick electrical connection with Wilo-Connector
  • Pump venting function
  • Manual restart
  • Blocking-current proof motor
  • Particle filter
Scope of delivery
  • Pump
  • Wilo-Connector
  • Seals
  • Installation and operating instructions
Technical data
  • Fluid temperature -10 °C to +95 °C
  • Mains connection 1~230 V, 50 Hz
  • Protection class IPX2D
  • Screwed connection Rp ½, Rp 1 and Rp 1¼
  • Max. operating pressure 10 bar
Materials
  • Pump housing: Grey cast iron (EN-GJL-200)
  • Impeller: Plastic (PP - 40% GF)
  • Pump shaft: Stainless steel
  • Bearing: carbon, metal impregnated
INSULATION-SHELL-INDIVIDUAL-FS14
Item no.: 4206066
Insulation cover intended for Yonos and Varios PICO in Union version FS14:
  • Thermal insulation of pump housing in heating applications.
  • Reduces heat loss by up to 85%.
  • Energy saving, reduces operating costs.
  • Protects the pump from external damage.
  • 100% recyclable.
CONNECTOR SC1
Item no.: 4144582
Contact, hit WS8:
  • Fits PICO pumps and Star-Z NOVA.
CONNECTOR ANGLE
Item no.: 4150229
Contact, angled WS8:
  • Fits PICO pumps and Star-Z NOVA.
  • Comes with cable.
Power supply cord + WS8 connector
Item no.: 4200870
Extension cable with connector:
  • WS8 connector.
  • Cable length 2 meters.
Gasket union G 40
Item no.: 2835960
Adapter Molex WS8
Item no.: 4522587
Molex connector, WS8
  • Fits PICO pumps and Star-Z NOVA
