1 replacement option found

Existing pump - Drainage and sewage

Brand Saniflo
Product name Sanivite +
Mains connection 1x230 V
Pipe Connection ø40 / ø32
Nominal power P2 0,40 kW

Replacement pump Exchange sheet

Product name HiDrainlift 3-37
Item no. 4191680
Mains connection 1x230 V
Pipe Connection ø40/40 / ø40/32
Rated Current 2,0 A
Fluid temperature range Max +35 °C

Comment

Check supply and pressure connection, adjustment of piping may be required.
Check space for new pumping station.

Product information

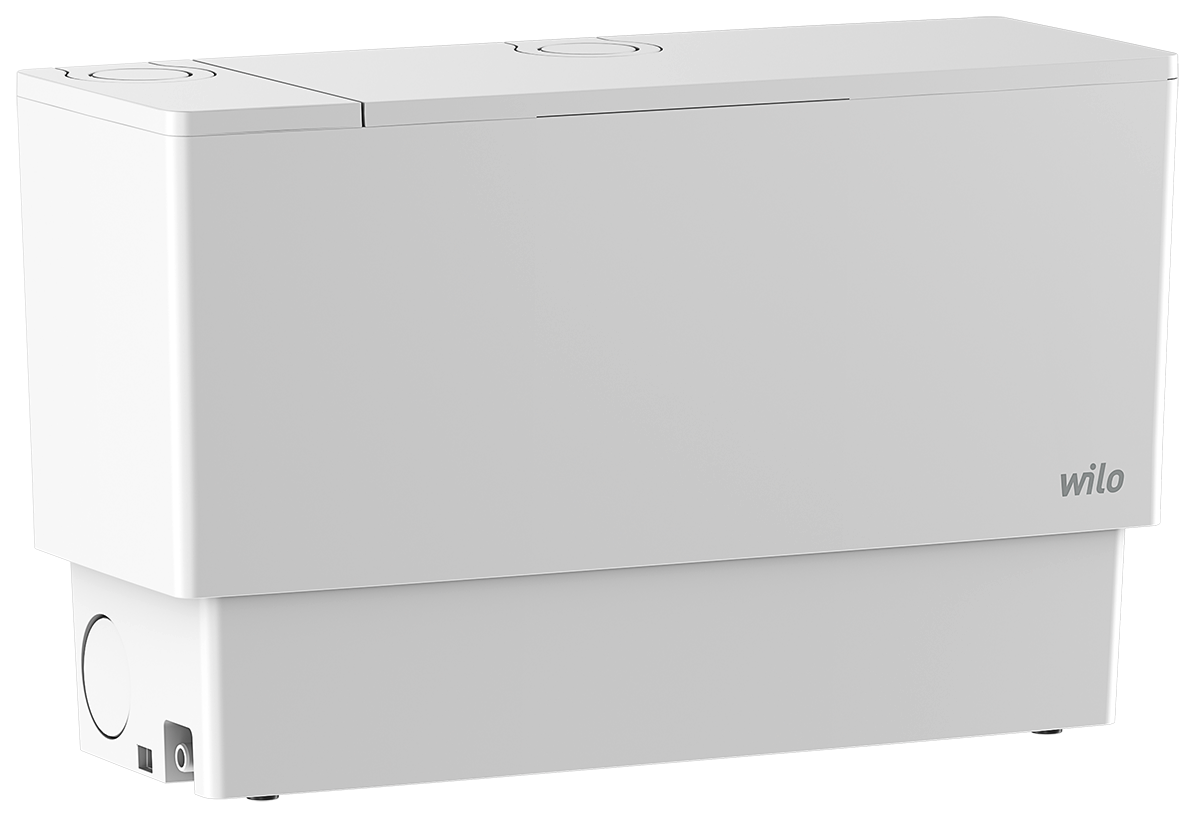

HiDrainlift 3-37

HiDrainlift 3-37
Item no. : 4191680

Your advantages
  • Very compact construction for installation in a wet area or under the shower tray (HiDrainlift 3-24)
  • Low-noise operation and installed active carbon filter for high user comfort
  • Reliable capacity and low electricity consumption for efficient wastewater disposal
  • Simple installation with flexible connection options
  • Systems ready for connection (HiDrainlift 3-35 and HiDrainlift 3-37)
Construction
Small sewage lifting unit for floor-mounted installation.

Application
Pumping of sewage without faeces (according to DIN EN 12050-2) that cannot be piped to the sewer system through the use of natural falls.

Equipment/function
  • Ready-to-plug
  • Thermal motor protection
  • Level checking via a pneumatic pressure transducer
  • Integrated non-return valve
  • Fixation material
  • Active carbon filter
Scope of delivery
  • Ready for connection wastewater lifting unit with macerator, active carbon filter and integrated non-return valves
  • Installation and operating instructions
  • Connection set for inlet and pressure pipes
Technical data
  • Mains connection 1~230 V, 50 Hz
  • Mains connection cable 1.5 m, with shock-proof plug
  • Fluid temperature max. 35 °C (up to 60/ 75 °C in short-time duty for 5 minutes, depending on the model)
  • Pressure connection DN 32
  • Inlet connection DN 40
  • Protection class IP 44
  • Gross tank volume 3.9 l / 16 l / 15.5 l
  • Switching volume 1.7 l / 2 l / 2 l
Materials
  • Pump housing: PPGF30
  • Motor housing: PPGF30
  • Gasket: EPDM
  • Tank material: PP
Description/construction
Ready-for-connection, automatically-switching wastewater lifting unit with built-in non-return valve and 2-3 inlet connecting pieces (depending on model). Odour-free exhaust ventilation into the installation room is implemented by means of an integrated active carbon filter.
